Servo Stabilizers
Let's Control Input Voltage

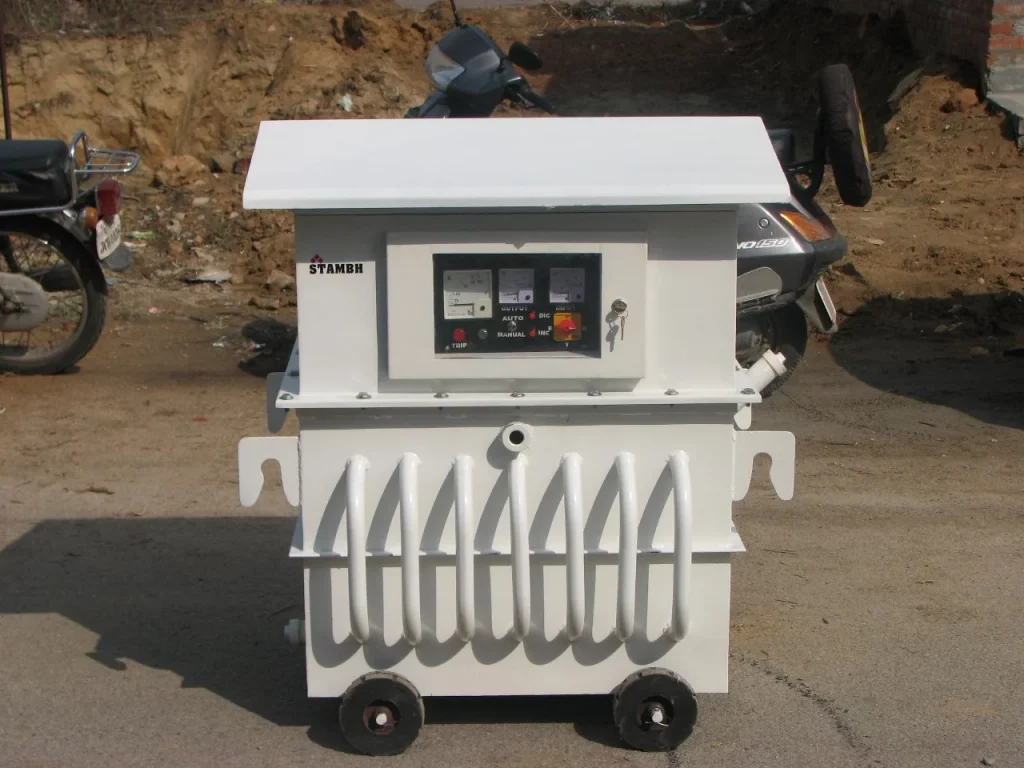

Oil Cooled Servo Stabilizer up to 800KVA
Relay Based AVR

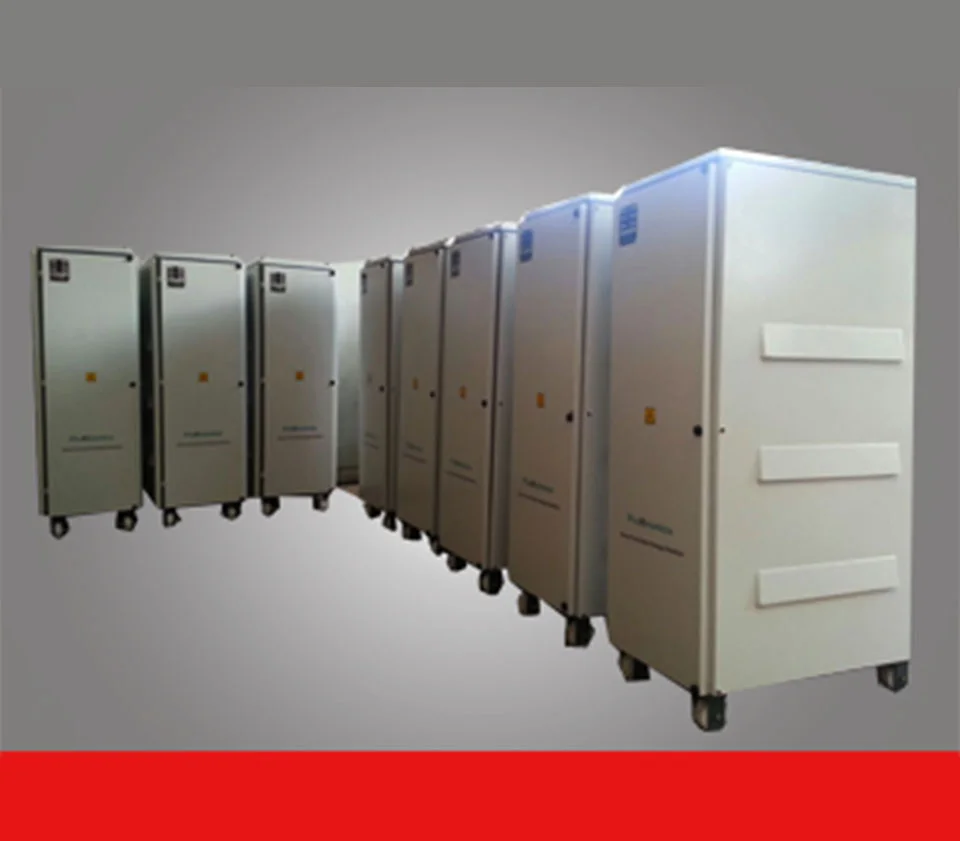

Air Cooled Servo Stabilizer up to 100KVA
IP55 Compliant Servo Stabilizer
Why Need Servo Stabilizer
A servo stabilizer is a stabilization system that is driven by a servo motor and uses a Buck-Enhance transformer booster to boost voltage while capturing input voltage changes and regulating current to the desired output. An AC synchronous motor controls the output voltage with elements such as a control card, dimmer, comparator, transistors, mocs, etc. in either a clockwise or anticlockwise manner.
Specifications:
Single Phase
1 KVA-20KVA
Three Phase
3 to 1200KVA
SALIENT FEATURES
- Fully Solid state Control Circuit
- ± 1.0% Regulation
- No wave form Distortion
- High Efficiency
- Auto-Manual operation
- Over-Under Voltage Protection (optional)
- Built in spike suppressor (optional)
- Special input output range (optional)
- Air/Oil Cooled
TECHNICAL SPECIFICATIONS
| Single Phase : | 170-270V, 140-280V, 110-280V |
|---|---|
| Three Phase : | 340-480V, 300-450V, 260-480V, 240-460V |
| Frequency : | Same as Input Frequency |
| Wave Form Distortion : | none |
| Speed of Correction : | 20V/Sec |
| Regulation : | ±1.0% from no load To full load |
| Ambient Temperature : | 0 to 55 Deg. C |
| Customised Voltage range also available. |
